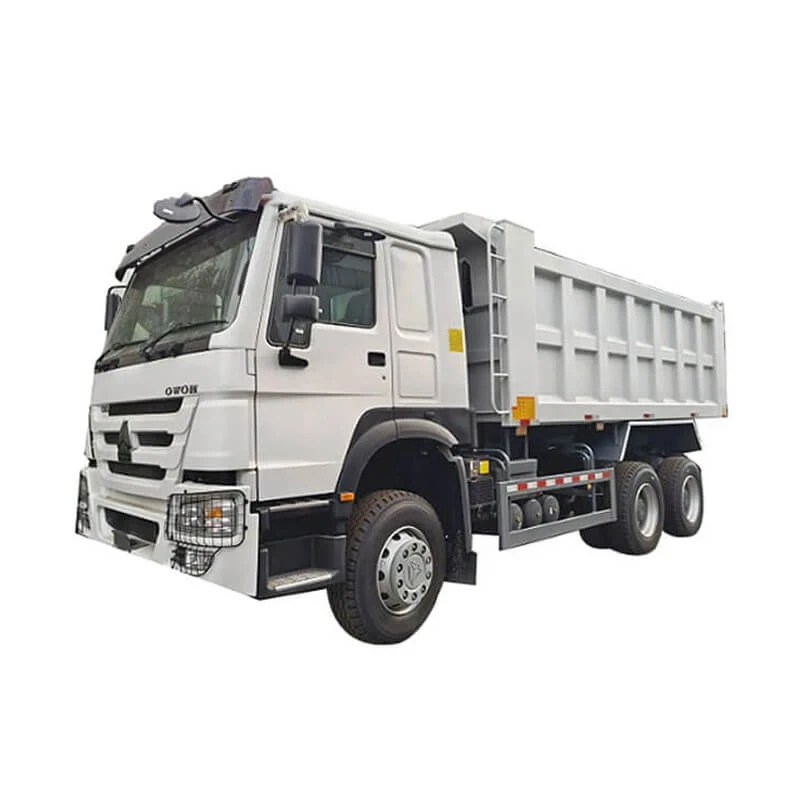

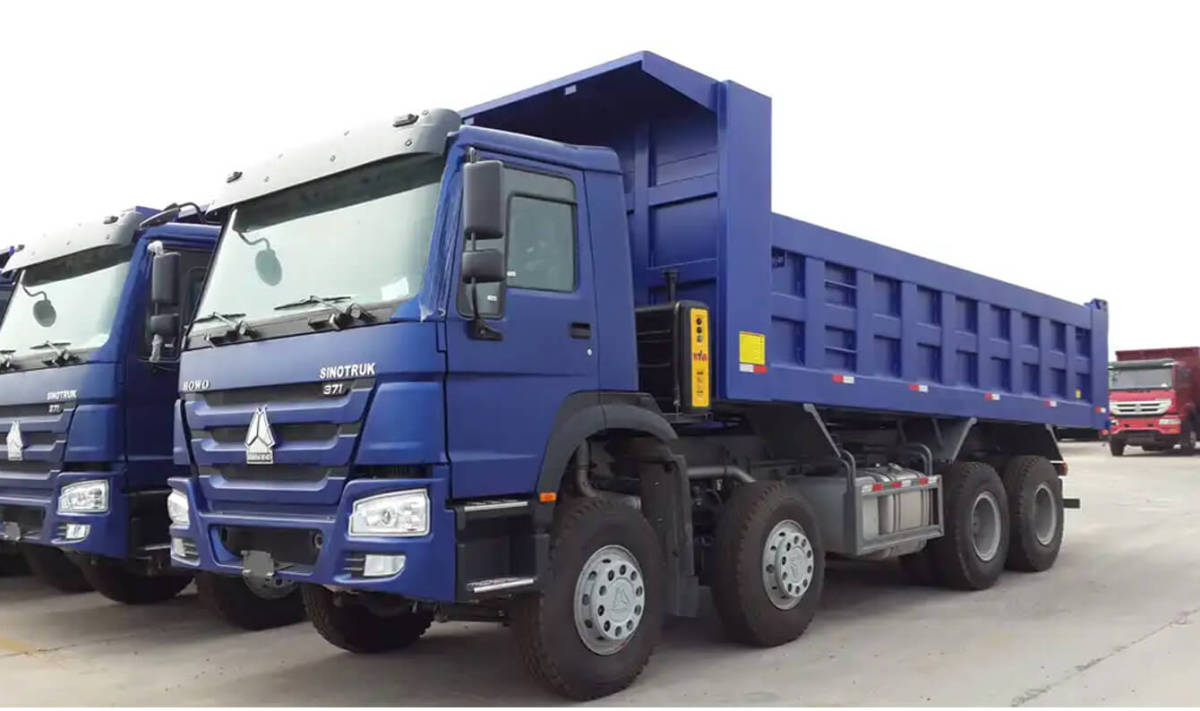

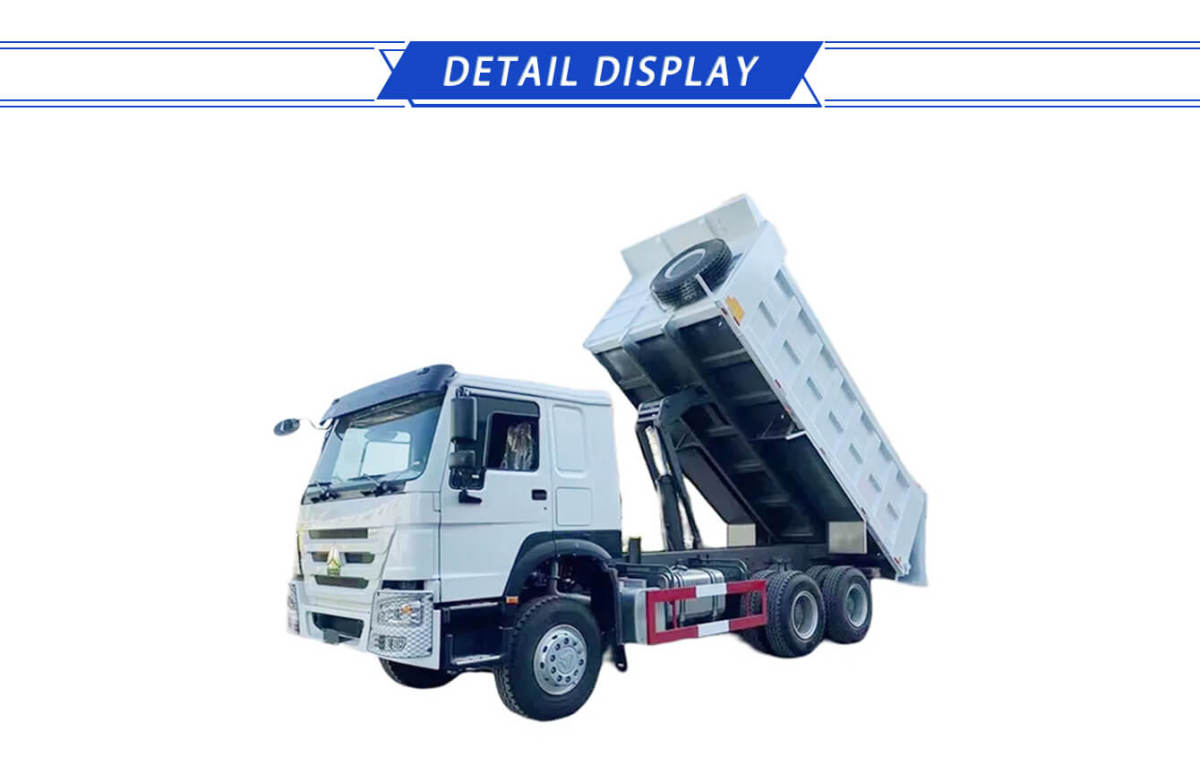

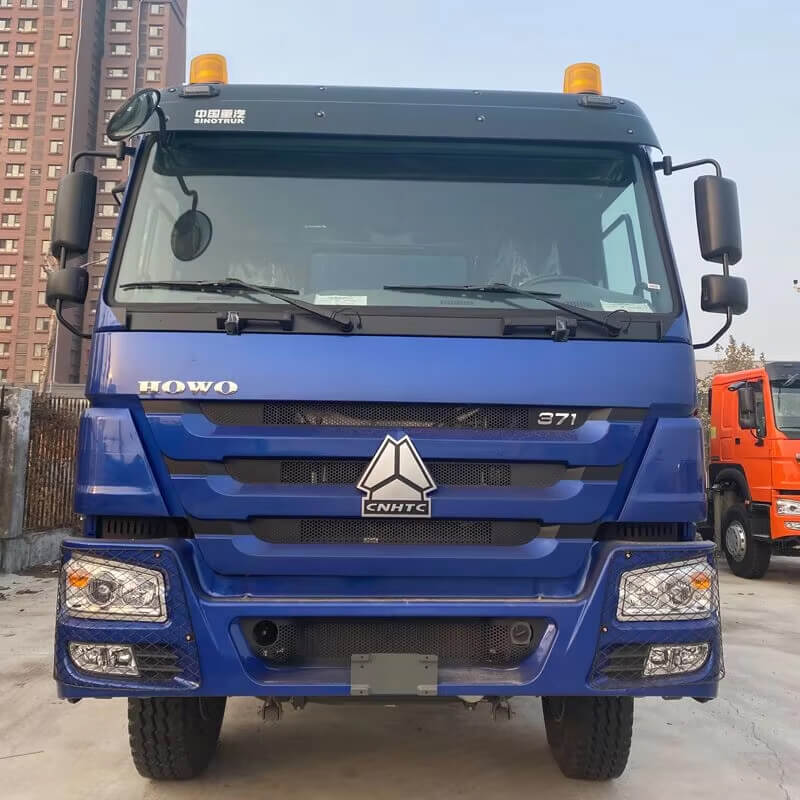

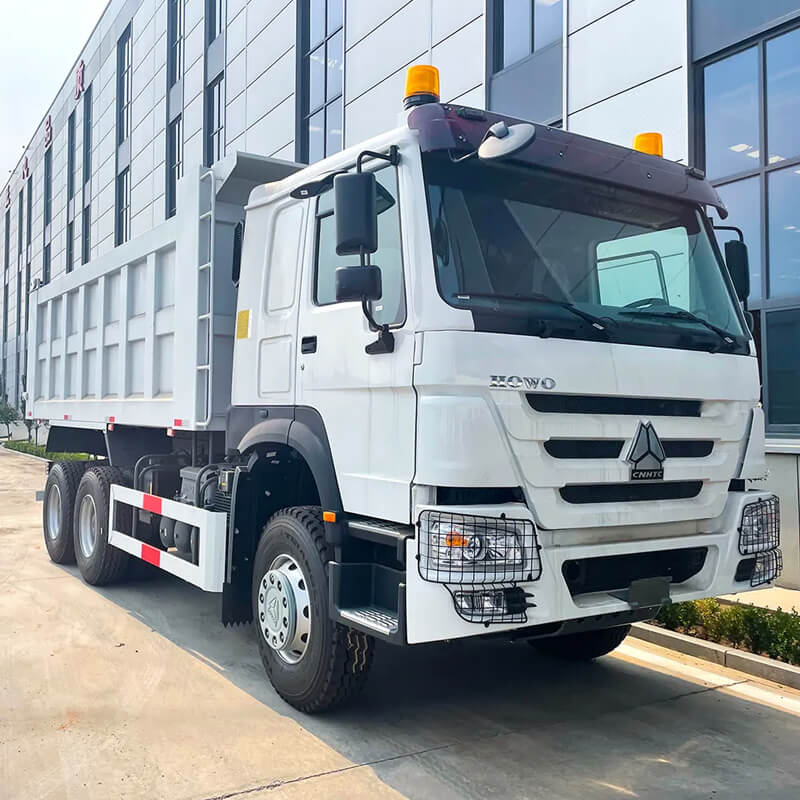

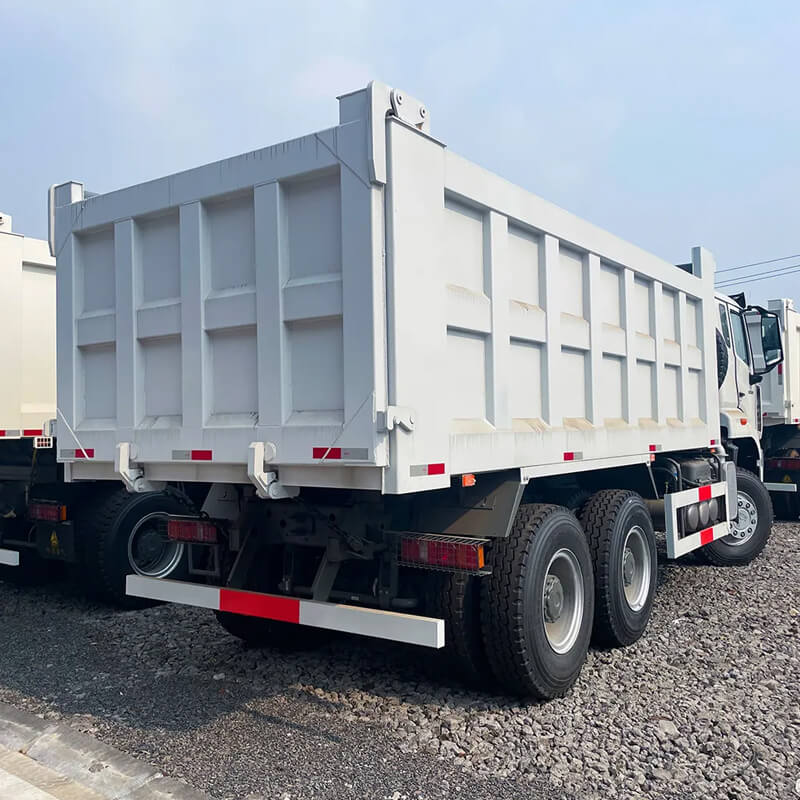

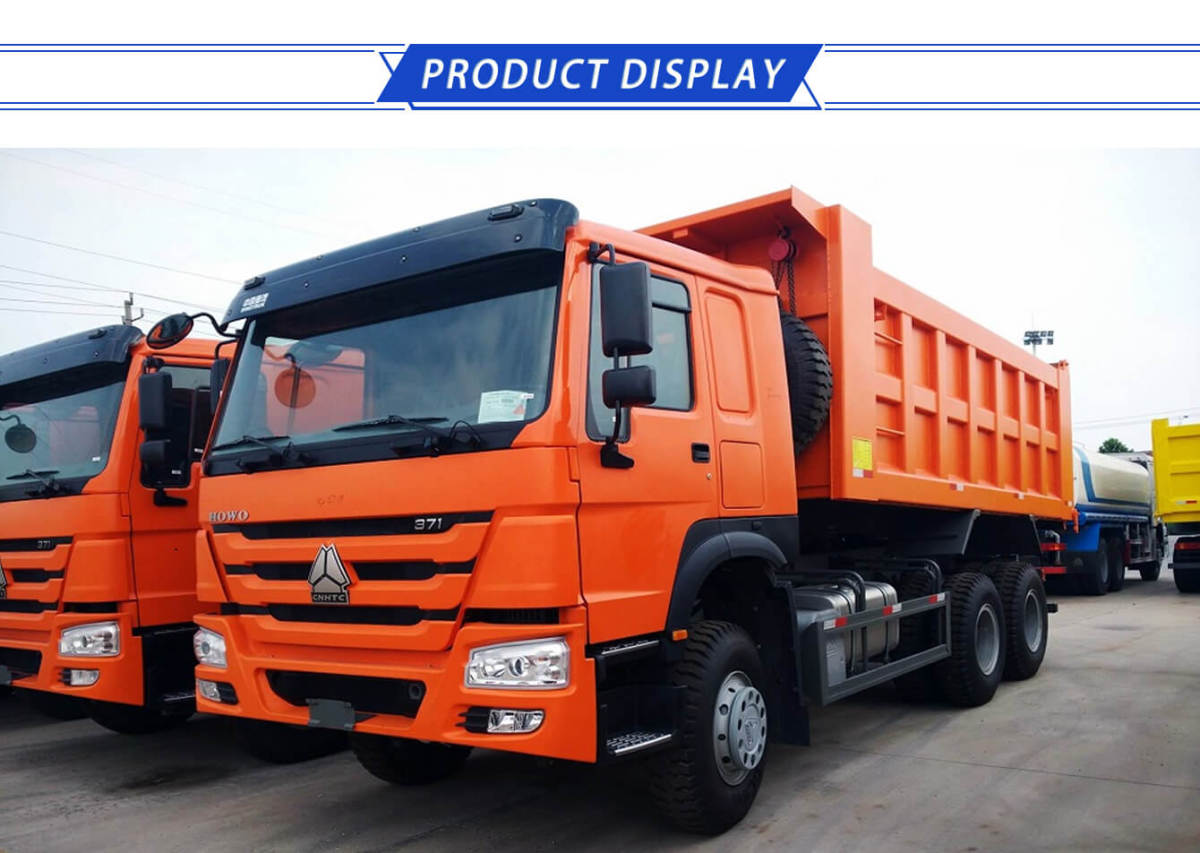

| SINOTRUK HOWO DUMP TRUCK 371HP 8X4 |
| Model | ZZ3317N3567W |
| Drive Style | Left Hand/Right Hand Drive |
| Size of the Box | 7300*2300*1500(L*W*H,mm); Rectangle Cargo Box; With Wax |
| Bottom:8mm, Side:6mm; Domestic brand 180 front lifting system |
| Usage | Transport sands, little rocks general construction materials |
| Overall Dimensions | 10245*2550*3500(L*W*H,mm) |
| Cargo Box Volume | 25 Cubic Meters |

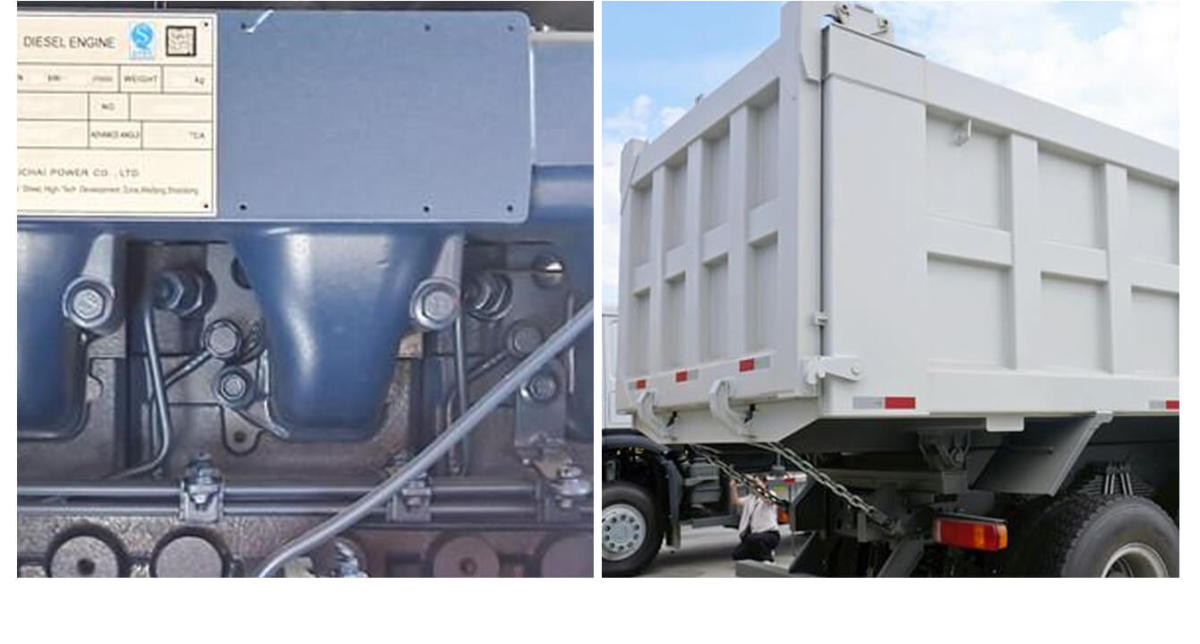

| Engine | Make: SINOTRUK |
| Diesel: 4-stroke direct injection diesel engine |
| Engine model: WD615.47, Euro2 emission standard |
| 6-cylinder in-line with water cooling, turbo-charging and inter cooling |
| Maximum output:371hp (273Kw) at 2000 rpm |
| Clutch | Single-plate dry diaphragm-spring clutch, diameter 430 mm, hydraulically operating with air assistance. WABCO clutch cylinder. Reinforced, Model A (1900Nm). |
| Transmission | HW transmission, model HW19710, 10 forward & 2 reverse |
| Torque: 1900Nm |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Front Axle | HF9 Rigid stud axle with double T-cross section, loading capacity: 9000kg, drum brake |
| Rear Axles | Double drive axle HC16 Ratio: 5.73 |
| Chassis | Oil tank Volume:300 L |

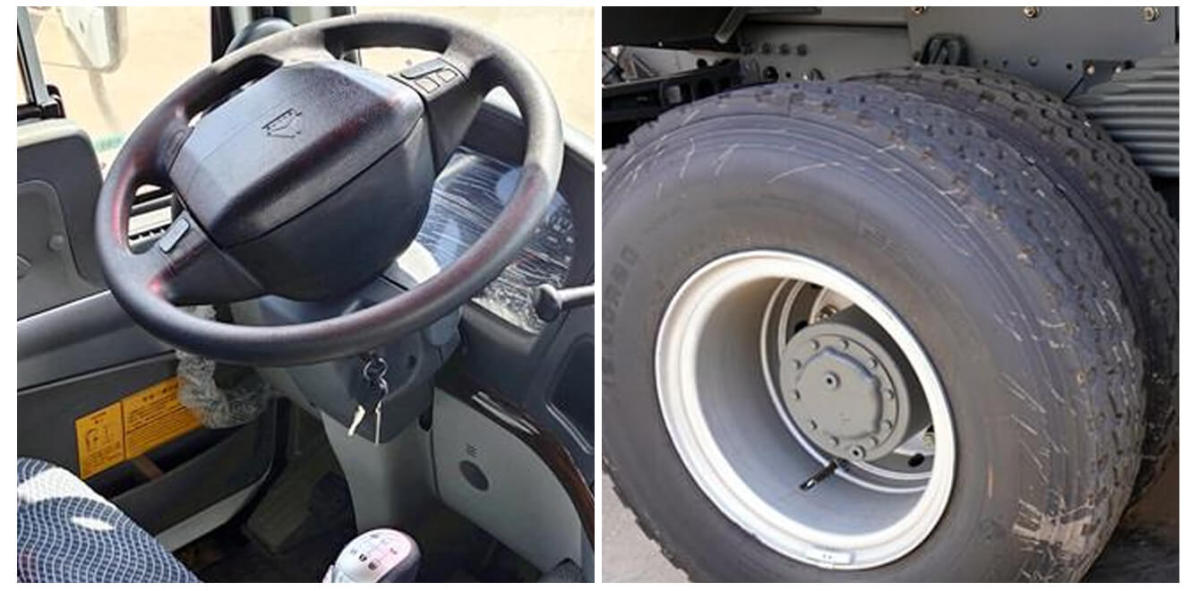

| Steering | ZF power steering, model ZF8118, hydraulic steering with power assistance,RHD |
| Ratio:26.2 |
| Brakes | Service brake: dual circuit compressed air brake |
| Parking brake (emergency brake): spring energy, compressed air operating on rear wheels |
| Without ABS |
| Exhaust break |
| Wheels & Tires | 12.00R20*13pcs steel tire; With one spare tire |
| Driver’s Cab | HW76 long cab, with single sleeper, with air conditioner |
| Electrics | Operating voltage: 24 V, negative grounded |
| Starter: 24 V, 7.5 Kw |
| Alternator: 3-phase, 28 V, 1540 W |
| Batteries: 2×12 V, 165 Ah |
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
