Lowbed trailer is a common type of truck, characterized by a lower chassis and suitable for transporting oversized and oversized goods. Below, I will provide a detailed description from the aspects of appearance characteristics, structural construction, applicability, and advantages and disadvantages.
In Terms Of Appearance Characteristics

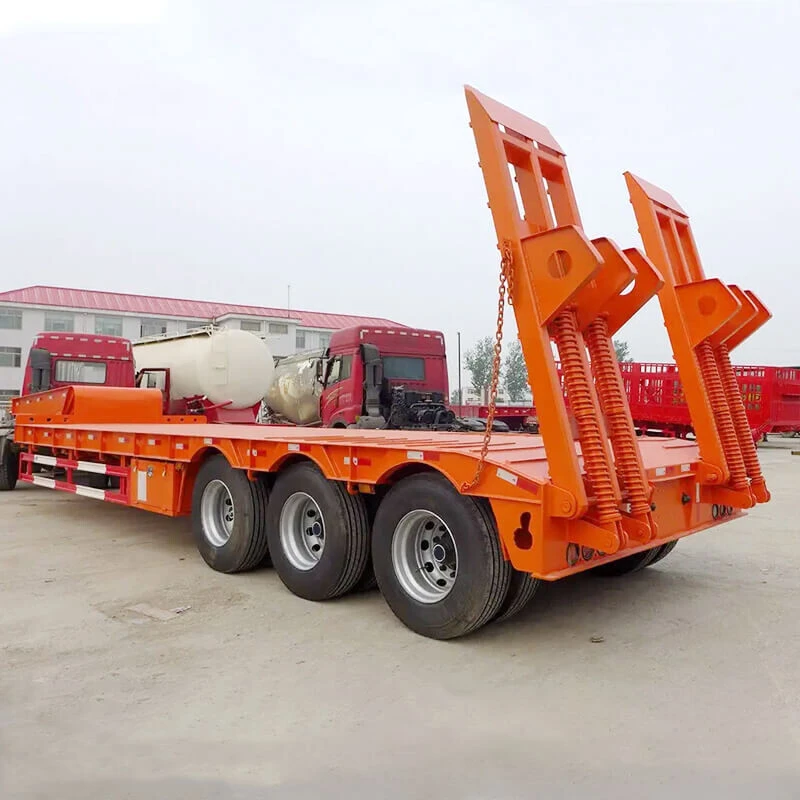

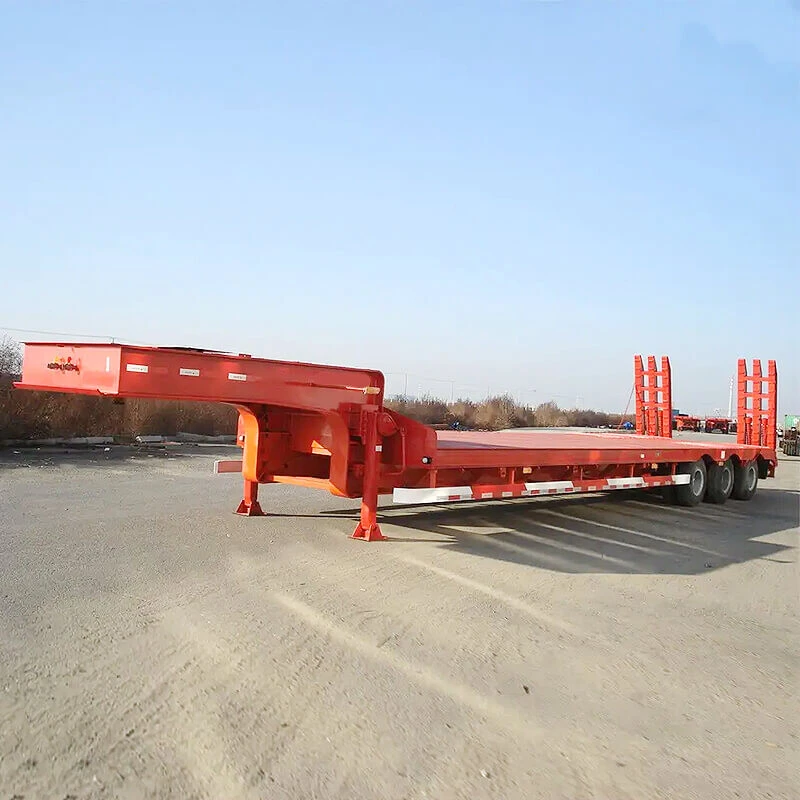

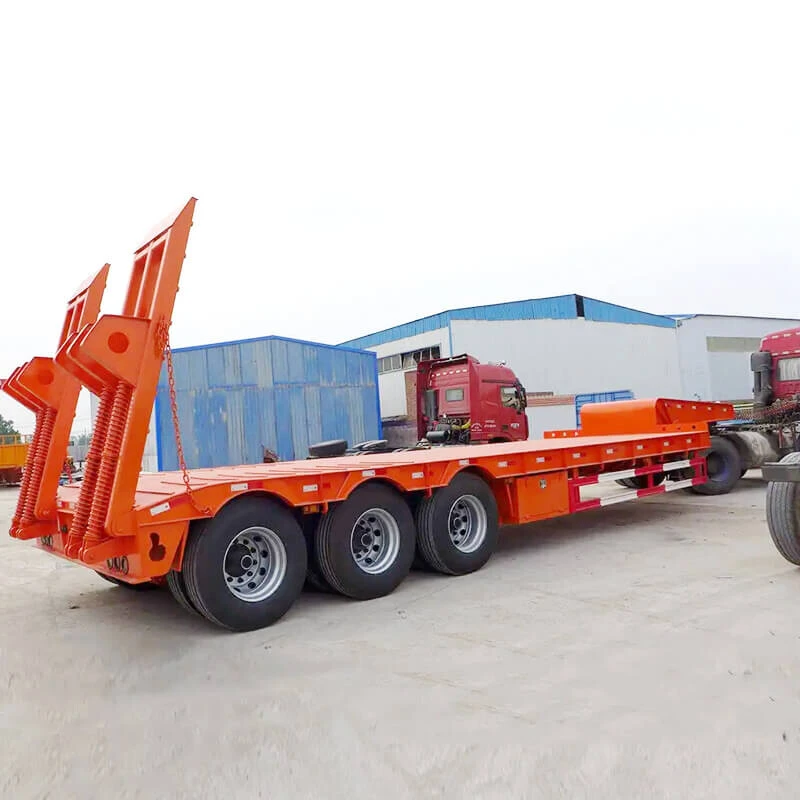

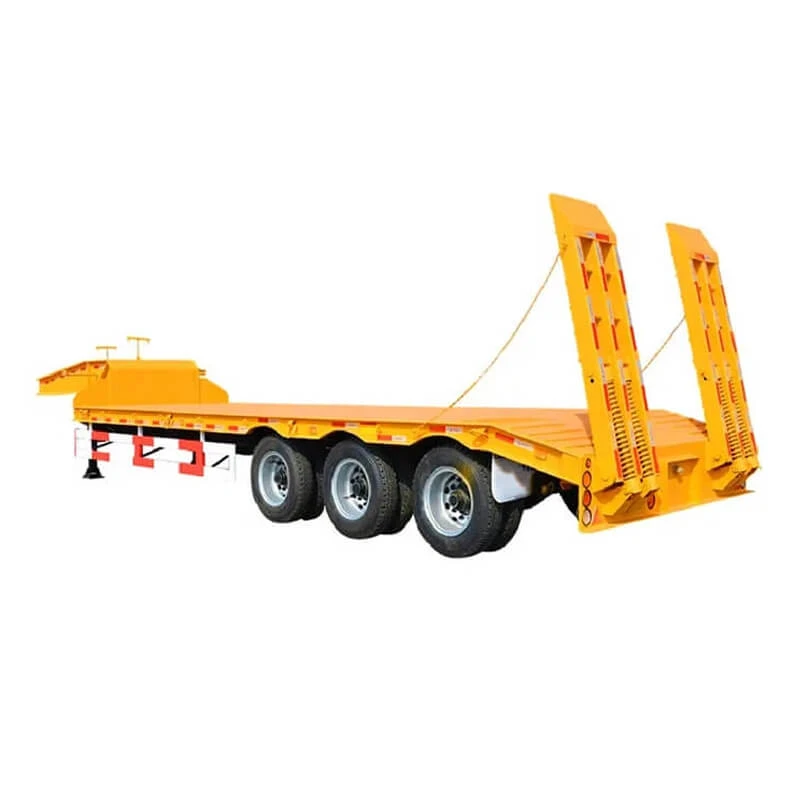

low trailer usually adopt a double-layer structure design, with a lower front and a higher rear, presenting an overall tilt angle for easy loading and unloading of goods. The surface of the car body is often equipped with magnesium aluminum alloy or stainless steel anti-corrosion and rust prevention treatment, making the appearance fashionable, smooth, and has a certain degree of corrosion resistance. In addition, both sides are equipped with locks, twisted wires, and fixing devices to ensure the stability of the goods during transportation.
Lowbed Trailer Specifications
Dimension: | 13000*3000*1750mm (Customized) |
Load Capacity: | 80Ton |
Width Extensions: | 5cm-20cm on both sides optional |

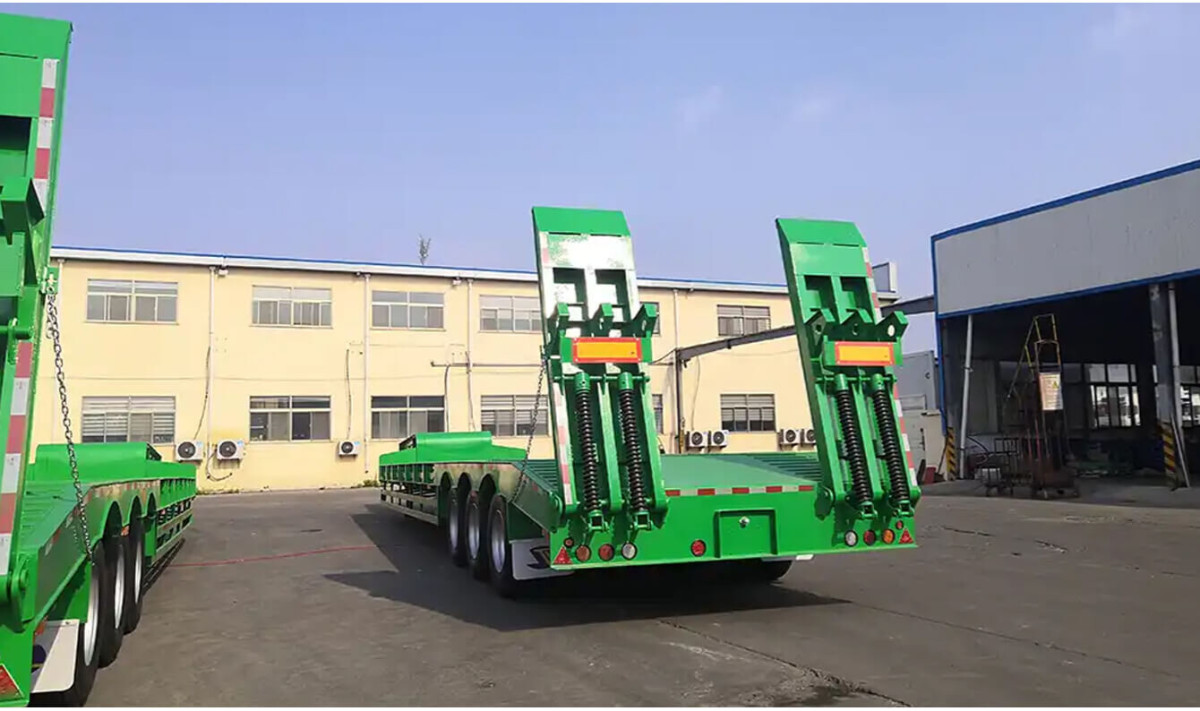

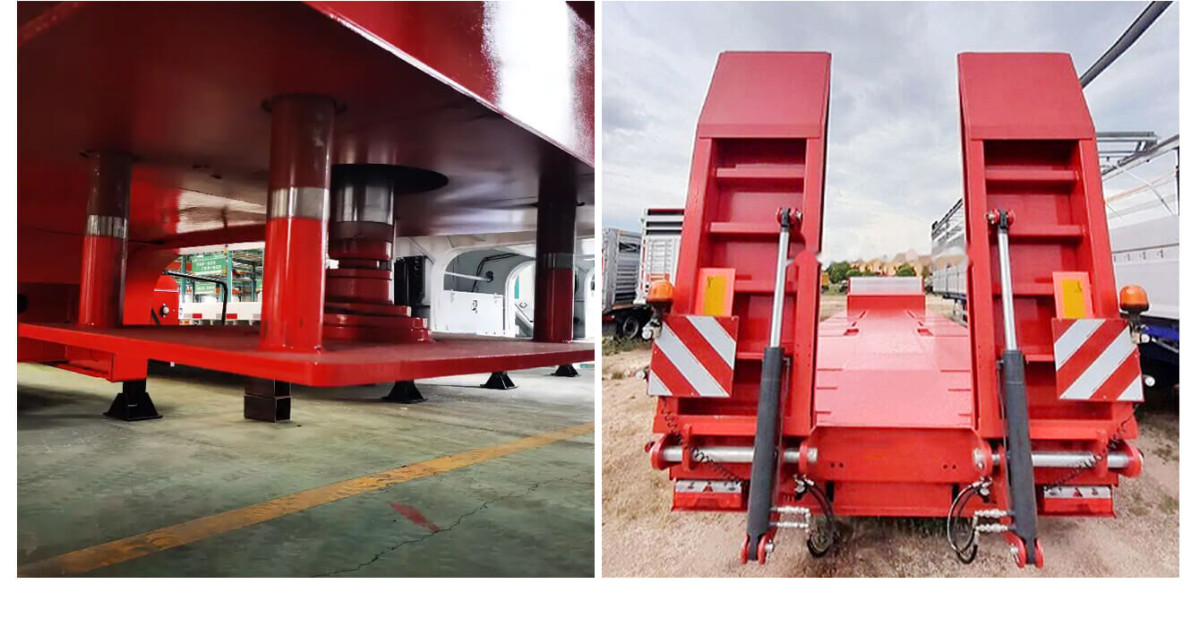

Rear Ramps: | Spring Mechanial or Hydraulicy Cyliner |
Main Beam: | High tension carbon steel |
Painting: | Complete chassis sand blasting to clean rust,1 coat of anti-corrosive prime,2coats of final paints |
Axle: | 3 Axles, FUWA/BPW/Chinese Brand |
Suspension: | Mechanial Suspension or Air Suspension |
King Pin: | 2.00inch or 3.5inch |
Landing Gear: | 28T lifting capacity with two speed |
Tire: | 12R22.5, 315/80R22.5, 10R22.5, 13R22.5 tires |
Brake System: | WABCO, ABS Optional |
Leaf Spring: | 90mm(W)*16mm(T)*10 Layer (Option:90/16/10;120/16/10) |
Electrial System: | 24V; 7 ways receptacle; LED lamps |
Accessories: | One tool box, one spare tire carrier |
Colour and Marking: | Optional |
