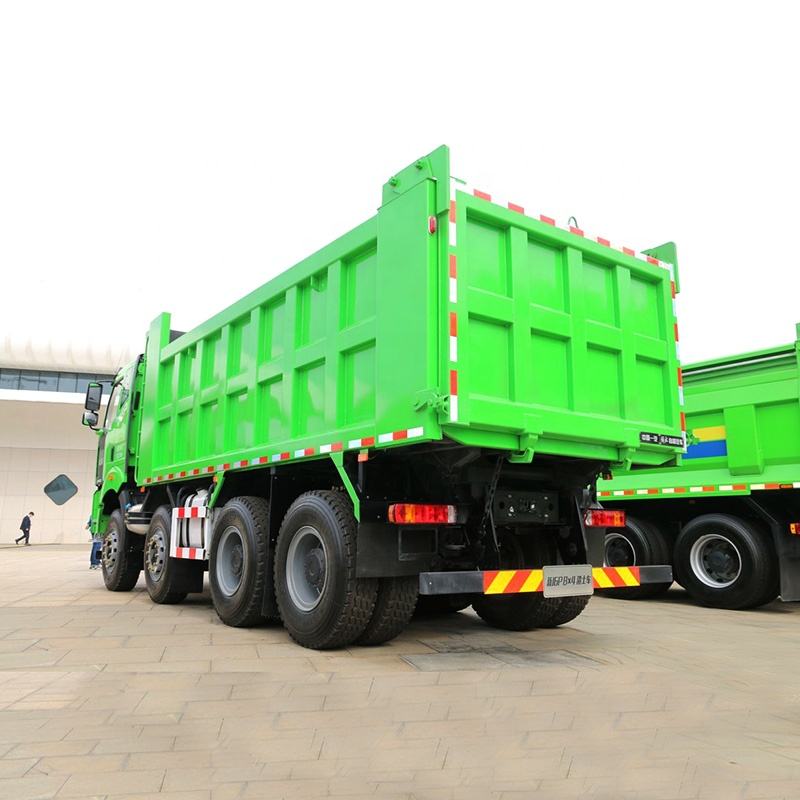

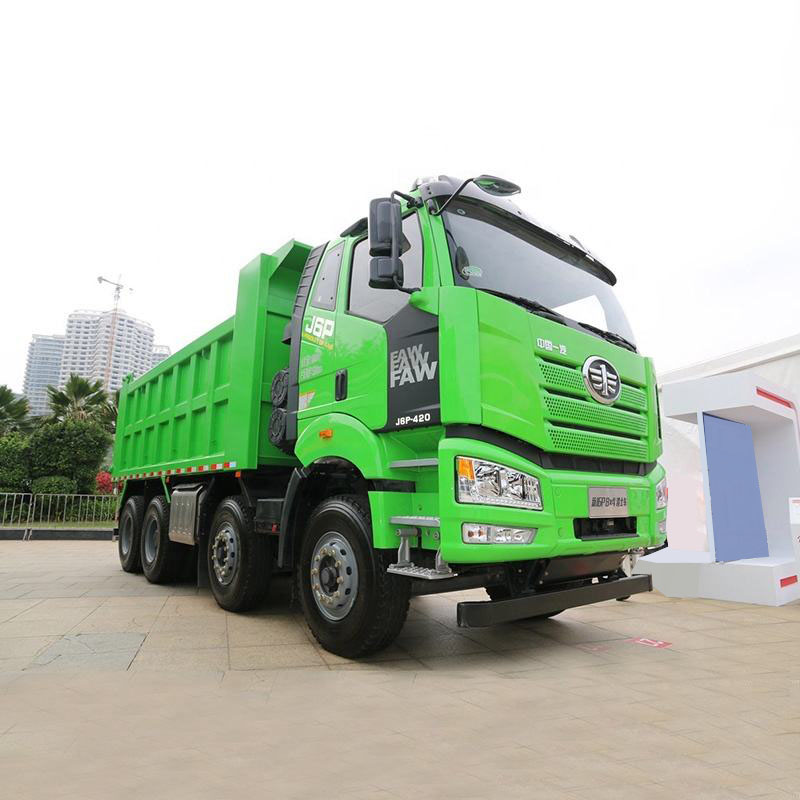

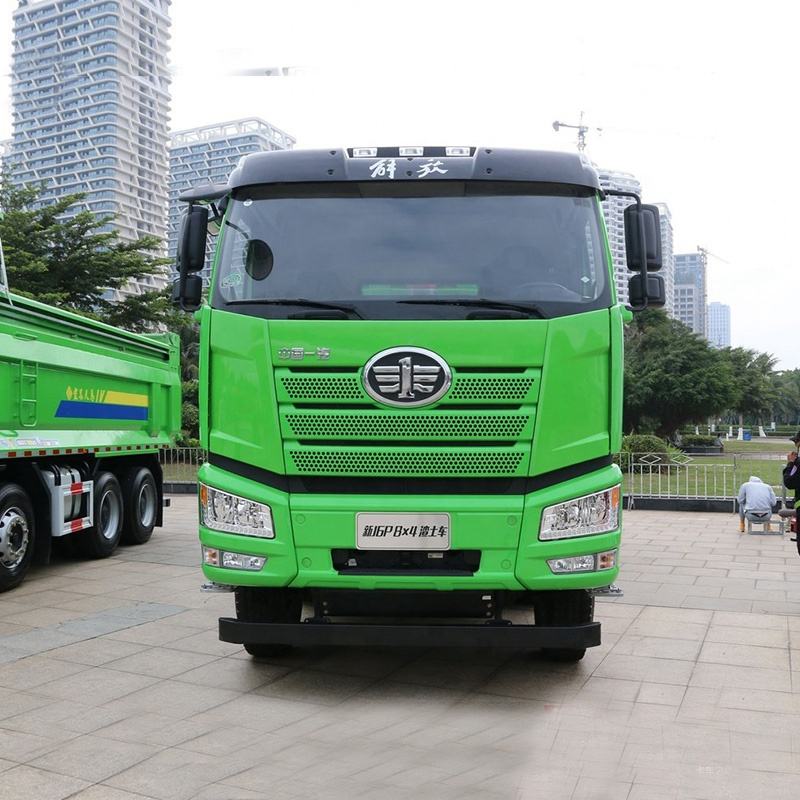

FAW J6P 8X4 dump truck
Model CA3310P66K24L1BT4E5

Engine CA6DL2-35E5, 350HP,Euro V

Box dimension 6200x2300x1330mm
Contact us
Products Description

Key Features & Advantages

1. Powerful 420HP Engine for Maximum Productivity

Powered by a high-performance FAW Xichai/Weichai 420HP turbocharged engine, the J6P delivers strong torque output and excellent fuel efficiency. This ensures fast acceleration, reliable climbing ability, and stable operation under heavy loads.


2. 8x4 Drive Configuration for Superior Stability

The 8x4 heavy-duty chassis offers outstanding load-bearing strength and exceptional road adaptability. It ensures stability when transporting large volumes of materials such as sand, gravel, coal, and construction waste.


3. High-Strength Dump Body for Heavy Loads

Crafted from reinforced manganese steel, the dump body is designed to resist wear, impact, and deformation. Various body sizes and thicknesses are available to suit diverse working conditions.


4. Reliable FAW J6P Heavy-Duty Chassis

Built on FAW’s premium J6P platform, the truck features:

Enhanced frame structure

Reliable axles and suspension

Advanced braking and safety systems

This ensures long service life and lower maintenance costs.


Model

FAW J6P 8x4 Heavy Duty Dump Truck

Drive Type

8x4 (Four Axles, Double Rear Drive)

Engine

FAW/Xichai CA6DM2-42E5 / Weichai WP12.420E50 (Euro V Standard)

Horsepower

420 HP

Torque

1900–2100 Nm

Transmission

Manual / 12-Speed Gearbox

Fuel Type

Diesel

Loading Capacity

35–45 Tons

Cargo Box Size

8600 × 2300 × 1500 mm

Overall Dimensions

10800 × 2550 × 3450 mm

Wheelbase

1800+3500+1350 mm

Cab

FAW J6P High Roof / Sleeper Cab with Air Suspension Seat

Tire Size

12.00R20 / 315/80R22.5

Braking System

Dual-Circuit Air Brake + Exhaust Brake

Hydraulic Lifting System

HYVA / Domestic High-Pressure Hydraulic System

Emission Standard

Euro III / Euro IV / Euro V
