Name: FAW J6P 6X4 dump truck
SKU: 0



Location: Home > Products > FAW Truck > FAW J6P 6X4 dump truck





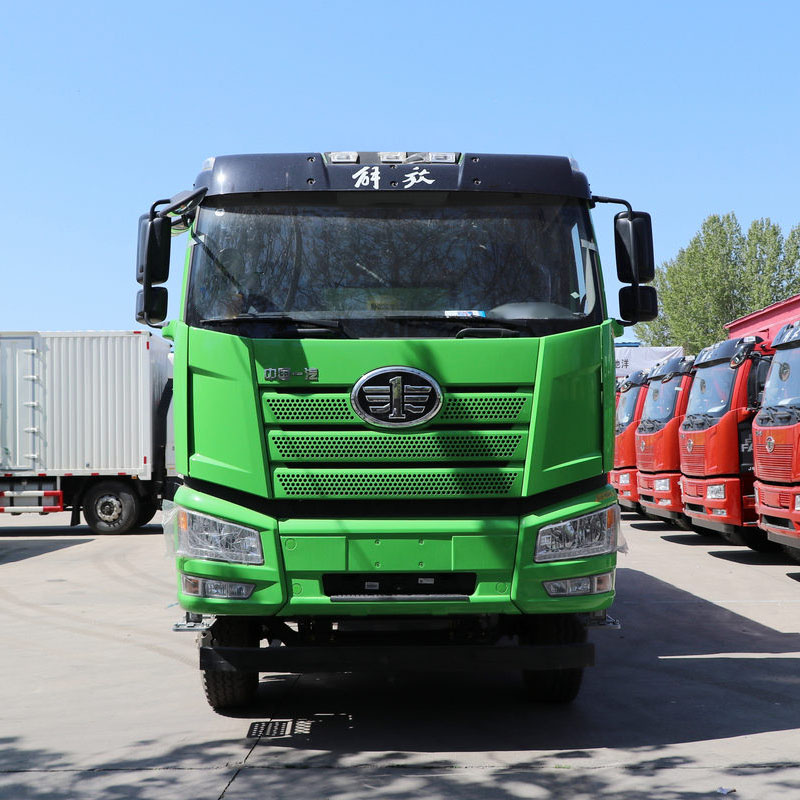

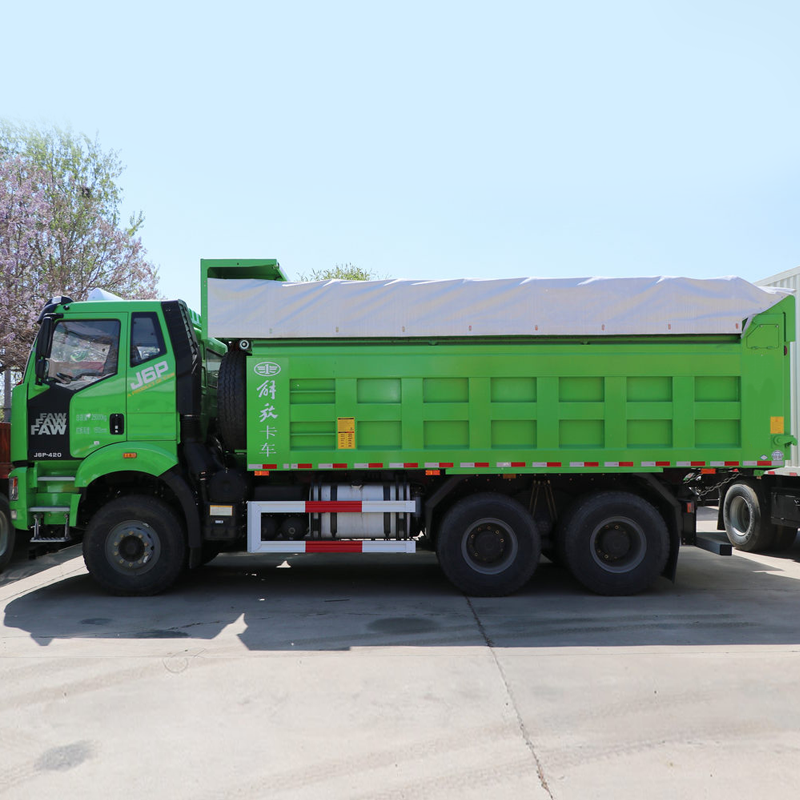

FAW J6P 6X4 dump truck

Model CA3250P66K2L2BT1AE4

Engine CA6DL2-35E4U2,350HP,Euro IV

Box dimension 6200x2300x1080mm

Email : inquiry@zhtrailer.com

WhatsApp : +86 13287518695

Tel : +86 13287518695

Products Description

Model	CA3250P66K2L2BT1AE4
Drive type	6X4
Wheel base(mm)	4300+1350
Overall dimension(mm)	9090X2500X3450
Curb weight(Kg)	11950
Load capacity(Kg)	30000
Cabin	Flat roof,one and half rows,luxury configuration,2 passengers allowable,with single bunker,A/C
Engine	Model	CA6DL2-35E4U2
	Max.output (kw/HP)	261/350
	Max.torque (N•m)	1500@1300~1500RPM
	Displacement (ml)	8600
	Emission standard	Euro IV
	Description	In-line, 6 cylinders,water cooled,4 strokes,turbo charged,inter-cooled,electric control,high pressure , common rail diesel engine
Gear box	CA10TAX160M,manual,10 forward ＆2 reverse gears
Driving axle	Load capacity 18000Kg
Front axle	Steering axle,load capacity 7000Kg
Quantity of leaf spring	12/12
Inner trimming
Standard configuration	Air suspension seat
	Seat heater
	Lumbar support to the driver
	Adjustable steering wheel
Electrical system
Standard configuration	CAN bus intellectual electronic control system
	New battery box
	Start/stop device under the vehicle
Safety
Standard configuration	Three points safety belt
	Automatic clearance adjustment arm,tachometer
Service brake	Dual circuit compressed air brake
Parking brake	Spring energy, compressed air operating on rear wheels
ABS	Provided
Comfortable accessories
Cab four points full floating suspension	Front and rear coil spring
Standard configuration	Cab anti-rolling stabilizing device
	Hand accelerator
Electric window	Provided
Chassis
Standard configuration	Big tool box
	Reinforced rim (with HQ mark)
	Three in one lock (Ignition switch, door and fuel tank)
Type specification	12.00R20 18PR
Number of tyres	10+1
Max.vehicle speed(km/h)	71
Box dimension(mm)	6200X2300X1080
